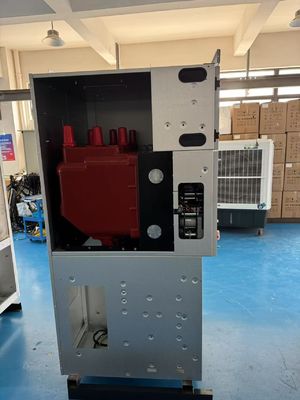

Enclosed Anti Interlock 50Hz 12kV MV Fixed Switchgear
Enclosed Anti Interlock 50Hz 12kV MV Fixed Switchgear
Electrical Switchgear Components
Product Name: MV Fixed Switchgear
Rate Voltage: 12kV
Rate Frequency: 50Hz
Place of Origin: wenzhou
Brand Name: flat up power
Certification: IEC
Model Number: EGC/GT-12/C/630A
Min...
Product Specifications
| Product Name | MV Fixed Switchgear |
|---|---|
| Rate Voltage | 12kV |
| Rate Frequency | 50Hz |
| Place of Origin | wenzhou |
| Brand Name | flat up power |
| Certification | IEC |
| Model Number | EGC/GT-12/C/630A |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | wooden |
| Delivery Time | 7 days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 5000 |
| Short-time Withstand Current(4S) | 20,25,31.5,40 KV |
| Rated Short Drop Out Current | 20,25,31.5,40 KV |
| Highlight | 12kV MV Fixed Switchgear, 50Hz MV Fixed Switchgear, Anti Interlock MV Fixed Switchgear |
| Items | Unit |
| Rate voltage | kV |
| Rate frequency | Hz |
| Rated main bus bar current | A |
| Rated branching bus bar current | A |
| Short-time withstand current(4S) | kV |
| Peak withstand current(peak.) | kV |
| Rated short drop out current | kV |
| Rated short circuit open and cut(Peak) | kV |
| Rated insulation level | 1min power frequency withstand voltage |
| breaker gap | kV |
| Rated lighting impulse withstand voltage(Peak) | ph-ph,ph-ground |
