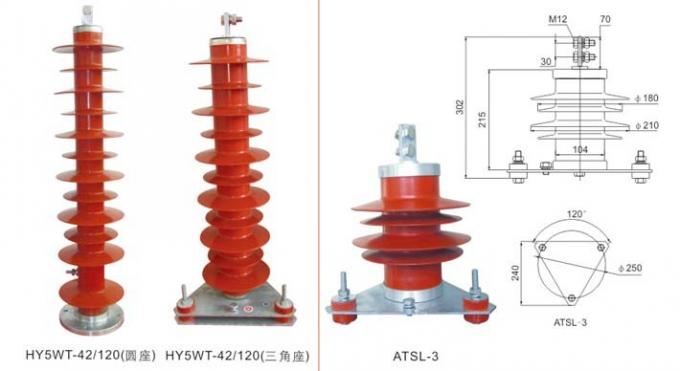

Electrical Railway Protection 65KA 100KA Lightning Arrester
Electrical Railway Protection 65KA 100KA Lightning Arrester
Zinc Oxide Lightning Arrester
Rated Voltage MOA: 42kv
DC 1mA Reference Voltage: ≥65kv
4/10 μs High Current: 65KA
Place of Origin: WENZHOU
Brand Name: flat up power
Certification: IEC
Model Number: HY5WT
Minim...
Product Specifications
| Rated Voltage MOA | 42kv |
|---|---|
| DC 1mA Reference Voltage | ≥65kv |
| 4/10 μs High Current | 65KA |
| Place of Origin | WENZHOU |
| Brand Name | flat up power |
| Certification | IEC |
| Model Number | HY5WT |
| Minimum Order Quantity | 51 PCS |
| Packaging Details | CARTONS |
| Delivery Time | 7 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 500000PCS/MONTH |
| System Nominal Vol | 27.5kv |
| Highlight | 100KA Lightning Arrester, 65KA Lightning Arrester, Railway Protection Lightning Arrester |
| Lightning arrester model | System rated voltage< |
| kV(r.m.s) | ≮kV |
| 27.5 | 42 |
| HY5WT-41/115 | 27.5 |
| HY5WT-84/240 | 55.0 |
| HY5WT-82/230 | 55.0 |
| HY10WT-42/120 | 27.5 |
| HY10WT-41/115 | 27.5 |
| TYPE | Continuous operating voltage/kV |
| 1/8s | 8/20s |
| 10kA | 20kA |
| ATSL-1 | 1 |
| ATSL-2 | 2 |
| ATSL-3 | 3 |
